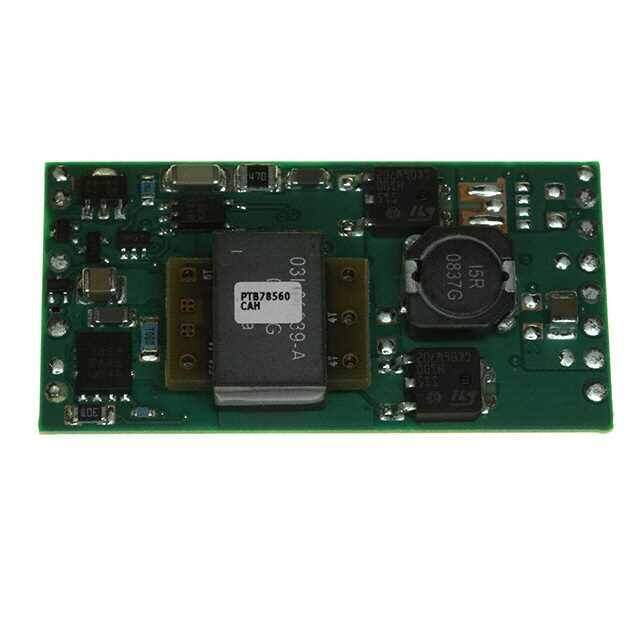

PTB78560CAH

Texas Instruments
RoHS
RoHS RoHS compliant
Package 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 1-OUT 9V to 13.2V 0.25A to 8A 30W 11-Pin DIP Module
PDF
/
Buying Options
Total Price: USD $64.94
Unit Price: USD $64.944
≥1 USD $64.944
≥10 USD $64.43536
≥100 USD $63.92907
≥500 USD $61.8992
≥1000 USD $58.85513
≥3000 USD $54.79613
Inventory: 235
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Thickness 9.73mm
Height 9.98mm

Technical

Isolation Isolated
Min Output Voltage 9V
Current - Output 1 2.5A
Max Output Voltage 13.2V
Output Power 30W
Output Current 2.5A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 9V~13.2V
Max Output Current 2.5A
Output Voltage 12V
Voltage - Input (Max) 60V
Voltage - Isolation 1.5kV
Efficiency 88%
Number of Outputs 1
Pin Count 11
Base Part Number PTB78560
Depth 26.54mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Power Rating 30W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
JESD-609 Code e3
Size / Dimension 2.05Lx1.05W x 0.39 H 52.1mmx26.7mmx10.0mm
Series PTB78560 (30W)
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 11
Surface Mount NO
Package / Case 11-DIP Module
Mounting Type Through Hole

Supply Chain

Lifecycle Status NRND (Last Updated: 5 days ago)
