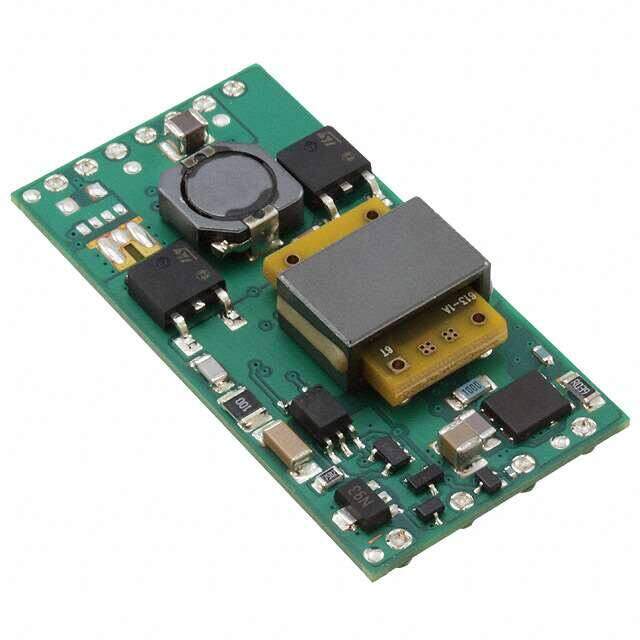

PTB78560AAS
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 3.6V to 5.5V 0.25A to 8A 30W 11-Pin DIP Module
PDF
/
Buying Options
Total Price: USD $74.86
Unit Price: USD $74.864306
≥1 USD $74.864306
≥10 USD $70.626706
≥100 USD $66.628965
≥500 USD $62.857512
≥1000 USD $59.299542
Inventory: 954
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 11-SMD Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTB78560 (30W)
Size / Dimension 2.04Lx1.04W x 0.40 H 51.8mmx26.5mmx10.3mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Isolated Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
Power Rating 30W
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 235; 260
Number of Functions 1
Depth 26.54mm
Base Part Number PTB78560
Pin Count 11
Number of Outputs 1
Efficiency 83%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 60V
Output Voltage 5V
Max Output Current 6A
Voltage - Output 1 3.6V~5.5V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 6A
Output Power 30W
Max Output Voltage 5.5V
Current - Output 1 6A
Min Output Voltage 3.6V
Isolation Isolated
Dimensions
Height 9.98mm
Thickness 9.73mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
