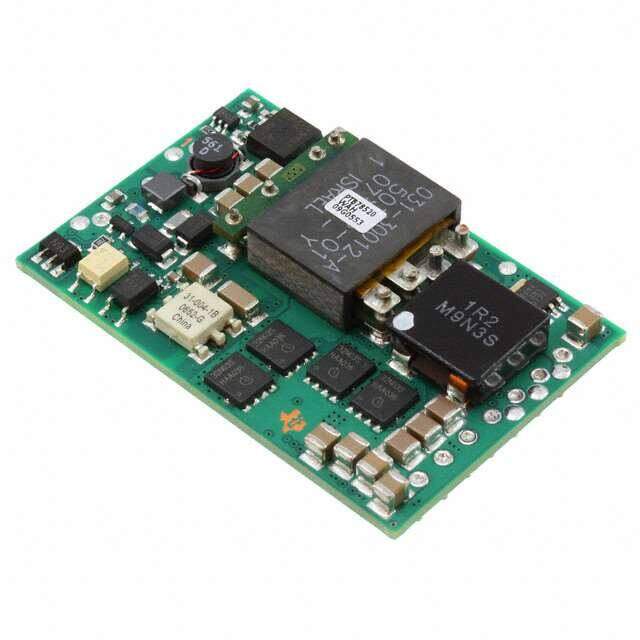

PTB78520WAH
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 48VIN 1-OUT 1.8V to 3.6V 20A 10-Pin DIP Module
PDF
/
Buying Options
Total Price: USD $175.45
Unit Price: USD $175.4479
≥1 USD $175.4479
≥10 USD $157.29815
Inventory: 809
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 5 days ago)
Physical
Mounting Type Through Hole
Package / Case 10-DIP Module
Surface Mount NO
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTB78520W
Size / Dimension 2.22Lx1.45W x 0.47 H 56.4mmx36.8mmx12.0mm
JESD-609 Code e3
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Isolated Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Power Rating 66W
Max Power Dissipation 72W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 36.83mm
Base Part Number PTB78520
Pin Count 10
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 60V
Output Voltage 3.3V
Max Output Current 20A
Voltage - Output 1 1.8V~3.6V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 20A
Output Power 66W
Max Output Voltage 3.6V
Voltage - Output 2 3.6V
Current - Output 1 20A
Total Power Output-Max 33W
Min Output Voltage 1.8V
Isolation Isolated
Current - Output 2 10A
Dimensions
Height 11.75mm
Thickness 12mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
