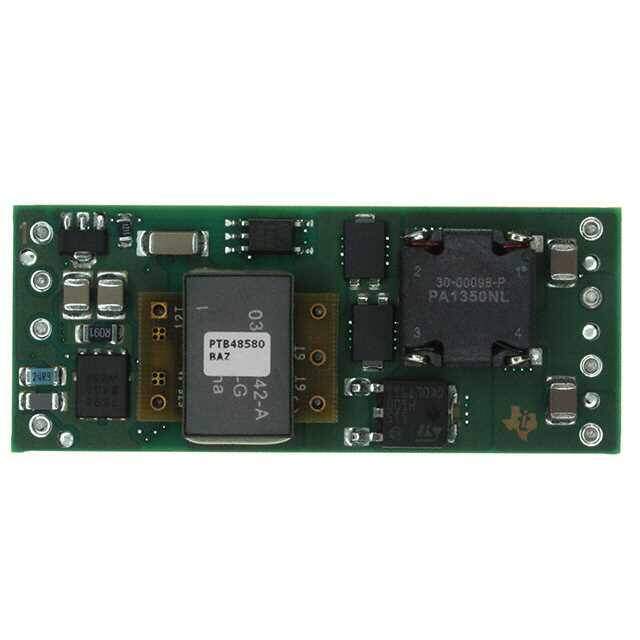

PTB48580BAS
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 30W
PDF
/
Inventory: 8625
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 11.176mm
Technical
Isolation Isolated
Voltage - Output 2 -12V
Output Power 30W
Output Current 3A
Current - Output (Max) 1.25A 1.25A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Max Output Current 1.25A
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 88%
Number of Outputs 2
Pin Count 8
Depth 22.86mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Applications ITE (Commercial)
Terminal Finish TIN LEAD
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e0
Size / Dimension 2.22Lx0.90W x 0.44 H 56.4mmx22.9mmx11.1mm
Series PTB48580
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Package / Case 8-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
