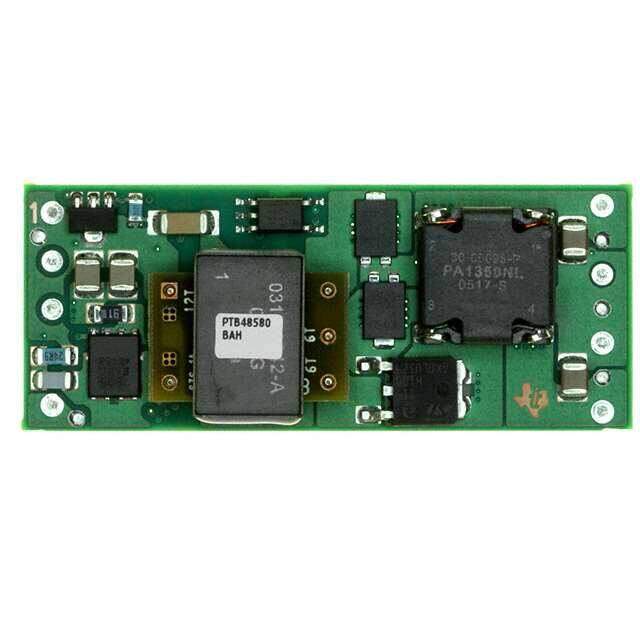

PTB48580AAH
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC-DC +-5V 3A DUAL HORZ T/H
PDF
/
Buying Options
Total Price: USD $11.41
Unit Price: USD $11.41235
≥1 USD $11.41235
≥10 USD $9.36415
≥100 USD $9.07155
≥500 USD $8.77895
≥1000 USD $8.48635
Inventory: 2361
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 10.25mm
Height 10.5mm
Technical
Isolation Isolated
Voltage - Output 2 -5V
Output Power 30W
Output Current 3A
Current - Output (Max) 3A 3A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Max Output Current 3A
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 86%
Number of Outputs 2
Pin Count 8
Depth 22.86mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
JESD-609 Code e3
Size / Dimension 2.00Lx1.60W x 0.41 H 50.8mmx40.6mmx10.5mm
Series PTB48580
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Package / Case 8-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status NRND (Last Updated: 4 days ago)
