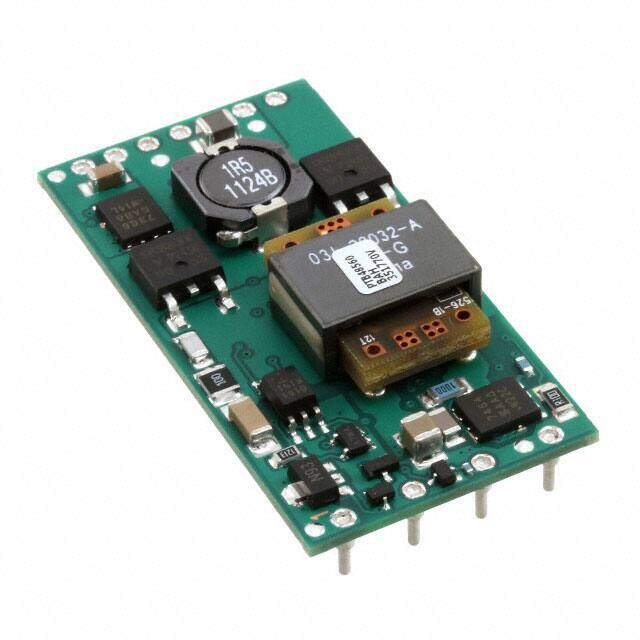

PTB48560BAH
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
30-W 48-V Input DC/DC Converters w/Auto-Track Sequencing 11-Through-Hole Module -40 to 85
PDF
/
Inventory: 5457
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 4 days ago)
Physical
Mounting Type Through Hole
Package / Case 11-DIP Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTB48560 (30W)
Size / Dimension 2.05Lx1.05W x 0.39 H 51.9mmx26.5mmx10.0mm
JESD-609 Code e3
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Isolated Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Power Rating 30W
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 51.94mm
Frequency 500kHz
Base Part Number PTB48560
Pin Count 11
Number of Outputs 1
Efficiency 82%
Voltage - Isolation 1.5kV
Output Voltage 3.6V
Max Output Current 8A
Voltage - Output 1 1.8V~3.6V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 8A
Output Power 30W
Max Output Voltage 3.6V
Current - Output 1 8A
Min Output Voltage 1.8V
Max Output Power 30W
Isolation Isolated
Max Input Voltage (DC) 75V
Min Input Voltage (DC) 36V
Dimensions
Height 9.98mm
Thickness 9.73mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
