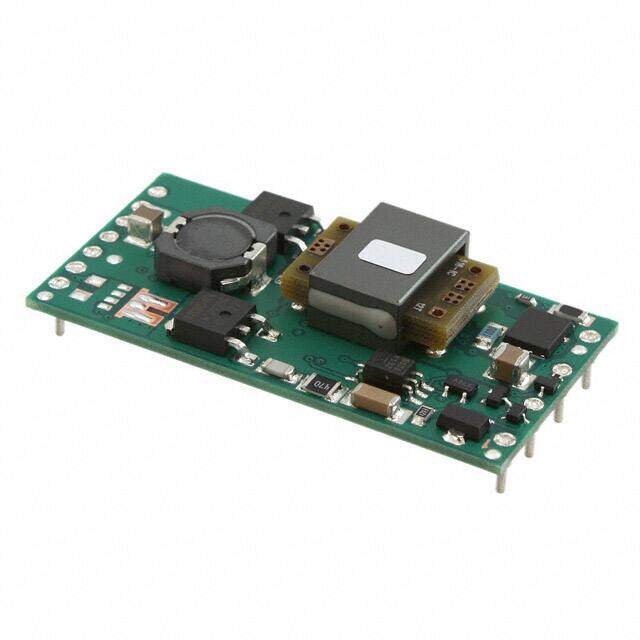

PTB48560AAH
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 48VIN 1-OUT 3.6V to 5.5V 6A 30W 11-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $393.77
Unit Price: USD $393.76835
≥1 USD $393.76835
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 4 days ago)
Physical
Mounting Type Through Hole
Package / Case 11-DIP Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTB48560 (30W)
Size / Dimension 2.05Lx1.05W x 0.39 H 51.9mmx26.5mmx10.0mm
JESD-609 Code e3
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Isolated Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Power Rating 30W
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 26.54mm
Base Part Number PTB48560
Pin Count 11
Number of Outputs 1
Efficiency 84%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 5V
Max Output Current 6A
Voltage - Output 1 3.6V~5.5V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 8A
Output Power 30W
Max Output Voltage 5.5V
Current - Output 1 6A
Min Output Voltage 3.6V
Isolation Isolated
Dimensions
Height 9.98mm
Thickness 9.73mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
