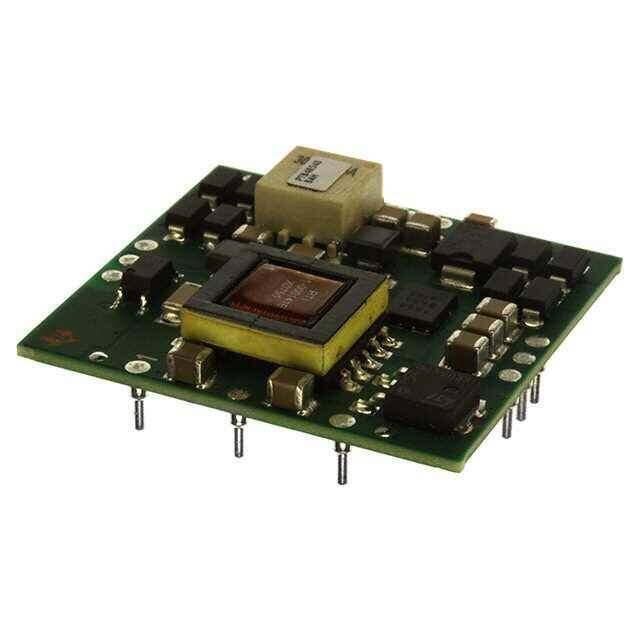

PTB48540BAH
RoHS
RoHS compliant
RoHS compliantPackage 13-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 3.3V 3A HORZ TH 13DIP
PDF
/
Buying Options
Total Price: USD $412.76
Unit Price: USD $412.76265
≥1 USD $412.76265
Inventory: 406
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Width 37.97mm
Length 41.15mm
Height 9mm
Technical
Isolation Isolated
Min Output Voltage 2.95V
Current - Output 1 3A
Max Output Voltage 3.65V
Output Power 10W
Output Current 3A
Trim/Adjustable Output YES
Input Voltage-Nom 36V
Voltage - Input (Min) 36V
Max Output Current 3A
Output Voltage 3.3V
Voltage - Input (Max) 57V
Voltage - Isolation 1.5kV
Efficiency 79%
Number of Outputs 1
Pin Count 13
Base Part Number PTB48540
Depth 37.97mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Power Rating 10W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated PoE Module
ECCN Code EAR99
Number of Terminations 13
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
JESD-609 Code e3
Series PTB48540 (10W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 13
Surface Mount NO
Package / Case 13-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status NRND (Last Updated: 4 days ago)
