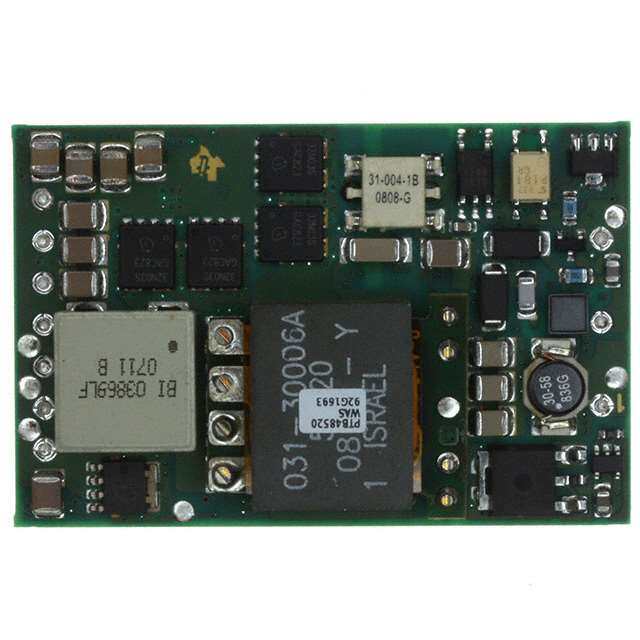

PTB48520WAS
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1.8-3.6V 25A 10SMD
PDF
/
Buying Options
Total Price: USD $210.38
Unit Price: USD $210.379825
≥1 USD $210.379825
≥10 USD $203.462116
≥25 USD $202.047779
≥50 USD $200.643271
≥100 USD $196.516428
≥500 USD $182.466504
Inventory: 1488
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 12.7mm
Technical
Isolation Isolated
Min Output Voltage 1.8V
Current - Output 1 25A
Max Output Voltage 3.6V
Output Power 82.5W
Output Current 25A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 1.8V~3.6V
Max Output Current 25A
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 91%
Number of Outputs 1
Pin Count 10
Base Part Number PTB48520
Depth 36.83mm
Number of Functions 1
Peak Reflow Temperature (Cel) 235; 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 90W
Power Rating 82.5W
Applications ITE (Commercial)
Terminal Finish Tin/Lead (Sn/Pb)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
JESD-609 Code e0
Size / Dimension 2.22Lx1.45W x 0.50 H 56.4mmx36.8mmx12.7mm
Series PTB48520W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-SMD Module
Mounting Type Surface Mount
