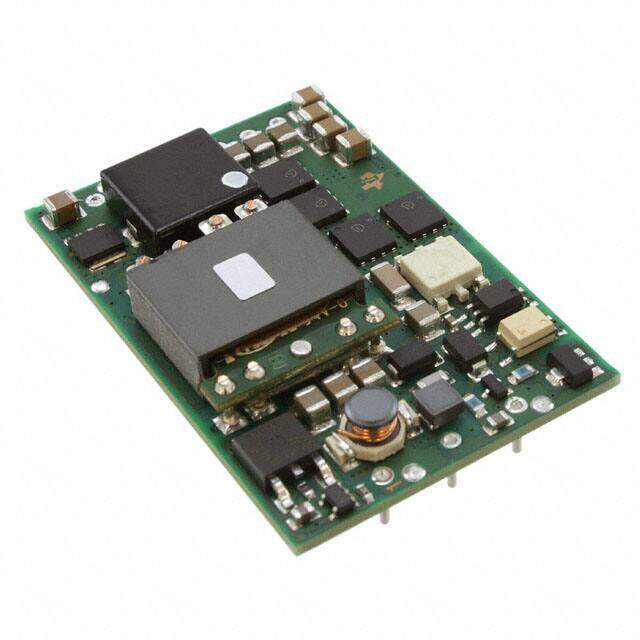

PTB48520WAH
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1.8-3.6V 25A TH 10DIP
PDF
/
Inventory: 6708
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 12mm
Height 11.75mm
Technical
Isolation Isolated
Min Output Voltage 1.8V
Current - Output 1 25A
Max Output Voltage 3.6V
Output Power 82.5W
Output Current 25A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 1.8V~3.6V
Max Output Current 25A
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 91%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 10
Base Part Number PTB48520
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 36.83mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 90W
Power Rating 82.5W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
JESD-609 Code e3
Size / Dimension 2.22Lx1.45W x 0.47 H 56.4mmx36.8mmx12.0mm
Series PTB48520W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status NRND (Last Updated: 4 days ago)
