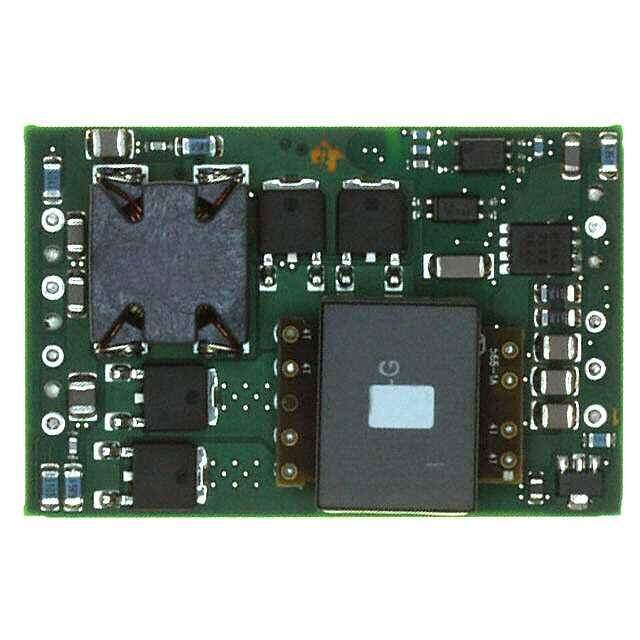

PTB48510CAS
RoHS
/
Package 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 66W
PDF
/
Buying Options
Total Price: USD $50.08
Unit Price: USD $50.079765
≥1 USD $50.079765
≥10 USD $47.245059
≥100 USD $44.570808
≥500 USD $42.047932
≥1000 USD $39.667859
Inventory: 1245
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height 13.208mm
Technical
Current - Output 2 2.2A
Isolation Isolated
Min Output Voltage 14.5V
Current - Output 1 2.2A
Voltage - Output 2 -15V
Max Output Voltage 15.5V
Control Features Enable, Active Low
Output Power 66W
Output Current 6.5A
Current - Output (Max) 2.2A 2.2A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 15V
Max Output Current 2.2A
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 90%
Number of Outputs 2
Pin Count 8
Base Part Number PTB48510
Depth 36.83mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 66W
Power Rating 66W
Applications ITE (Commercial)
Terminal Finish TIN LEAD
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e0
Size / Dimension 2.22Lx1.45W x 0.52 H 56.4mmx36.8mmx13.2mm
Series PTB4851x
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Surface Mount NO
Package / Case 8-SMD Module
Mounting Type Surface Mount
