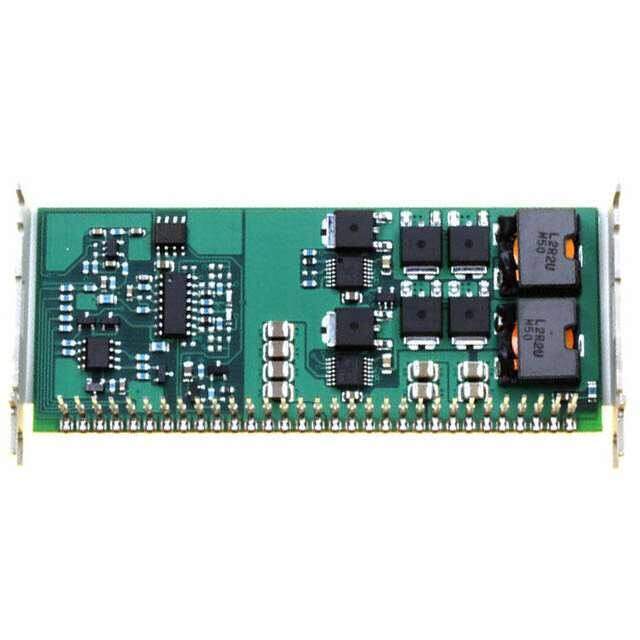

PT8124A
RoHS
RoHS compliant
RoHS compliantPackage 31-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.05-1.825V
PDF
/
Inventory: 7538
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 31-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series Excalibur? PT8120
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 31
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 54.8W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Base Part Number PT8124
Pin Count 31
Number of Outputs 1
Efficiency 84%
Voltage - Input (Max) 13.2V
Output Voltage 1.825V
Max Output Current 30A
Voltage - Output 1 1.05V~1.825V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Output Current 30A
Control Mode VOLTAGE-MODE
Switcher Configuration SINGLE
Switching Frequency-Max 400kHz
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
