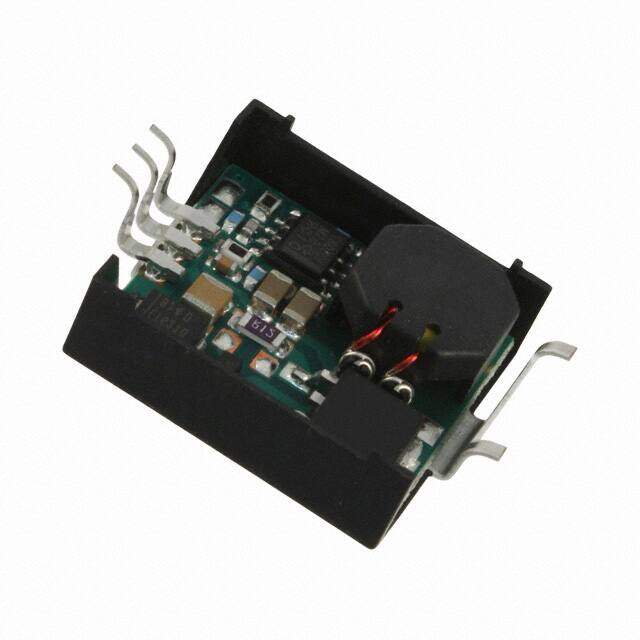

PT79SR105S image
Favorite
PT79SR105S image
Favorite

PT79SR105S

Texas Instruments
RoHS
RoHS RoHS compliant
Package 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description REGULATOR -5V -1.5A 3PSIP SMD
PDF
/
Buying Options
Total Price: USD $201.6
Unit Price: USD $201.601173
≥1 USD $201.601173
≥10 USD $194.972121
≥25 USD $193.616804
≥50 USD $192.270907
≥100 USD $188.316263
≥500 USD $174.852614
Inventory: 1140
Minimum: 1
-
+

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 3-SMD Module
Surface Mount YES
Number of Pins 3
Weight 7g

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Series PT79SR100
Size / Dimension 0.94Lx0.90W x 0.34 H 23.9mmx22.9mmx8.6mm
Feature OTP, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 7.5W
Technology HYBRID
Terminal Position SINGLE
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
Depth 22.86mm
Current Rating -1.5A
Base Part Number 79SR105
Pin Count 3
Number of Outputs 1
Efficiency 85%
Voltage - Input (Max) -30V
Output Voltage -5V
Max Output Current -1.5A
Voltage - Input (Min) -9V
Input Voltage-Nom -10V
Output Current -1.5A
Output Power 7.5W
Max Output Voltage -5V
Topology Boost
Control Mode VOLTAGE-MODE
Current - Output 1 1.5A
Min Output Voltage -5V
Switcher Configuration BUCK
Isolation Non-Isolated

Dimensions

Height 8.636mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
