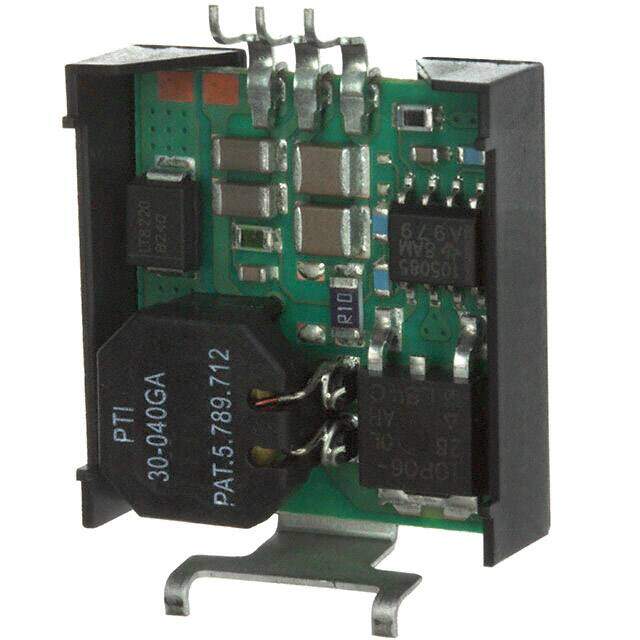

PT78ST151S image
Favorite
PT78ST151S image
Favorite

PT78ST151S

Texas Instruments
RoHS
RoHS RoHS compliant
Package 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC/DC Converters 5.1Vout 1.5A Wd-Inp Pos Step-Down ISR
PDF
/
Inventory: 3481
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height 8.636mm

Technical

Isolation Non-Isolated
Switching Frequency-Max 700kHz
Switcher Configuration BUCK
Min Output Voltage 5.1V
Current - Output 1 1.5A
Control Mode VOLTAGE-MODE
Max Output Voltage 5.1V
Output Power 7.65W
Output Current 1.5A
Input Voltage-Nom 17V
Voltage - Input (Min) 9.1V
Max Output Current 1.5A
Output Voltage 5.1V
Voltage - Input (Max) 38V
Efficiency 85%
Number of Outputs 1
Base Part Number 78ST151
Depth 22.86mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 7.7W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.94Lx0.90W x 0.34 H 23.9mmx22.9mmx8.6mm
Series PT78ST100
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 6.5g
Number of Pins 3
Surface Mount YES
Package / Case 3-SMD Module
Mounting Type Surface Mount
