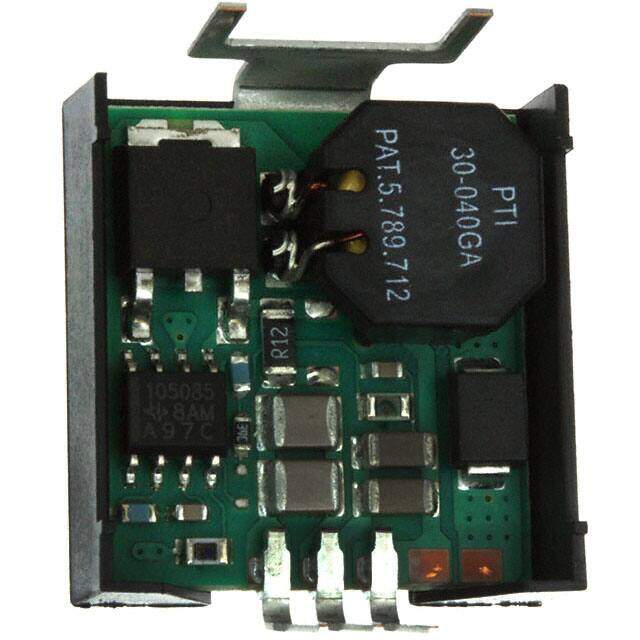

PT78ST136H
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Non-Isolated DC/DC Converters 3.6Vout 1.5A Wd-Inp Pos Step-Down ISR
PDF
/
Buying Options
Total Price: USD $141.64
Unit Price: USD $141.636541
≥1 USD $141.636541
≥10 USD $133.619381
≥100 USD $126.056021
≥500 USD $118.920773
≥1000 USD $112.189408
Inventory: 1305
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 7.874mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 700kHz
Switcher Configuration BUCK
Min Output Voltage 3.6V
Current - Output 1 1.5A
Control Mode VOLTAGE-MODE
Max Output Voltage 3.6V
Output Power 5.4W
Output Current 1.5A
Input Voltage-Nom 10V
Voltage - Input (Min) 9V
Max Output Current 1.5A
Output Voltage 3.6V
Voltage - Input (Max) 26V
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 1
Base Part Number 78ST136
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 22.86mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 5.4W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.94Lx0.90W x 0.31 H 23.9mmx22.9mmx7.9mm
Series PT78ST100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 6.5g
Number of Pins 3
Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole, Right Angle
