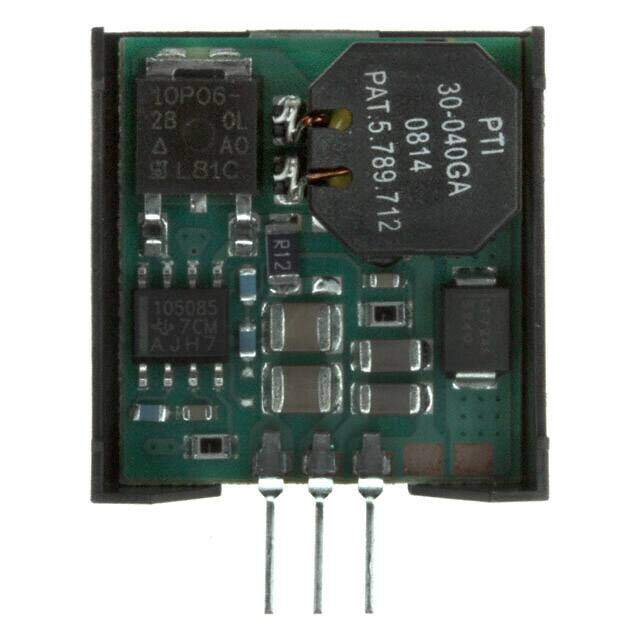

PT78ST115T
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 15.0V TAB MOUNT
PDF
/
Inventory: 2615
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 3-SIP Module
Weight 6.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PT78ST100
Feature OTP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 22.5W
Terminal Position SINGLE
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 215
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number 78ST115
JESD-30 Code R-XSMA-X3
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 90%
Voltage - Input (Max) 38V
Output Voltage 15V
Max Output Current 1.5A
Voltage - Input (Min) 19V
Switcher Configuration BUCK
Switching Frequency-Max 700kHz
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
