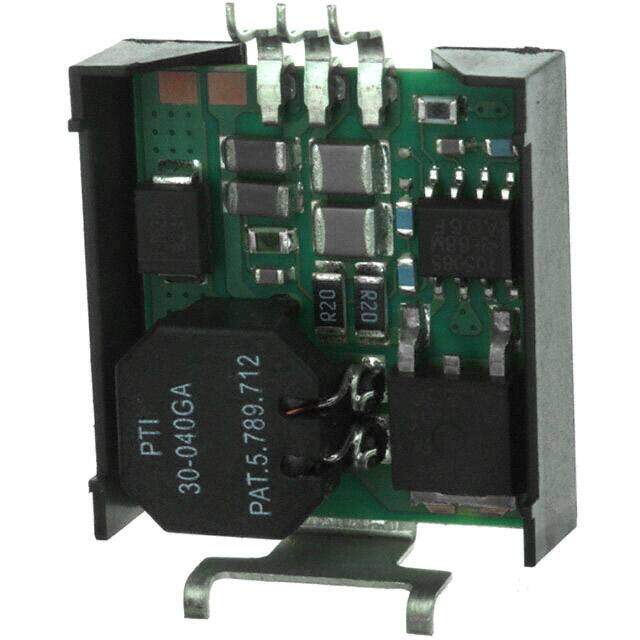

PT78NR206S
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR -6V 1.8A 3PSIP SMD
PDF
/
Inventory: 8515
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 10.414mm
Technical
Switching Frequency-Max 700kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Input Voltage-Nom 10V
Voltage - Input (Min) 9V
Max Output Current 1.8A
Output Voltage -6V
Voltage - Input (Max) 15V
Efficiency 78%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-G3
Pin Count 3
Base Part Number 78NR206
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 215
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OTP, SCP
Size / Dimension 1.01Lx0.93W x 0.41 H 25.7mmx23.6mmx10.4mm
Series PT78NR200 (12W)
Packaging Tray
Operating Temperature 0°C~85°C
Physical
Weight 11g
Package / Case 3-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
