PT78NR109V
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description

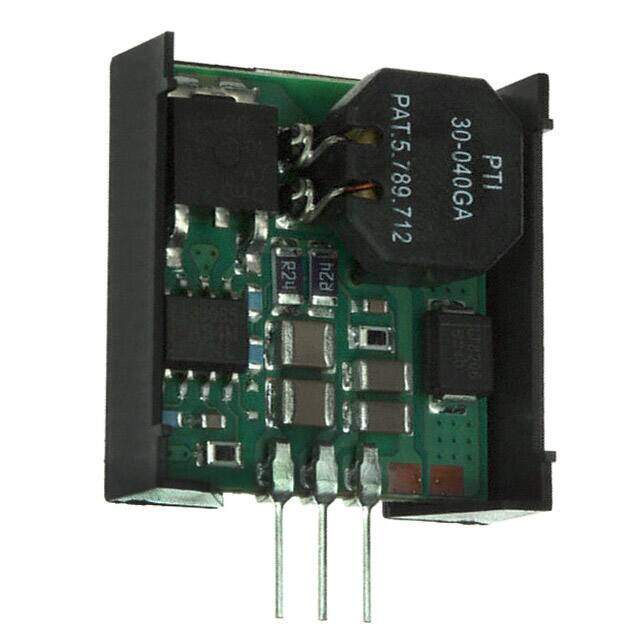

REGULATOR -9V 0.55A 3SIP VERT
PDF
/
Inventory: 8855
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 23.876mm
Technical
Switching Frequency-Max 700kHz
Switcher Configuration SINGLE
Min Output Voltage -5V
Current - Output 1 550mA
Control Mode VOLTAGE-MODE
Topology Boost
Max Output Voltage -5V
Output Power 5W
Output Current 550mA
Input Voltage-Nom 10V
Voltage - Input (Min) 7V
Max Output Current 1A
Output Voltage -9V
Voltage - Input (Max) 21V
Efficiency 75%
Number of Outputs 1
Base Part Number 78NR109
Depth 7.62mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.90Lx0.31W x 0.94 H 22.9mmx7.9mmx23.9mm
Series PT78NR100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 3
Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole
Alternative Model
