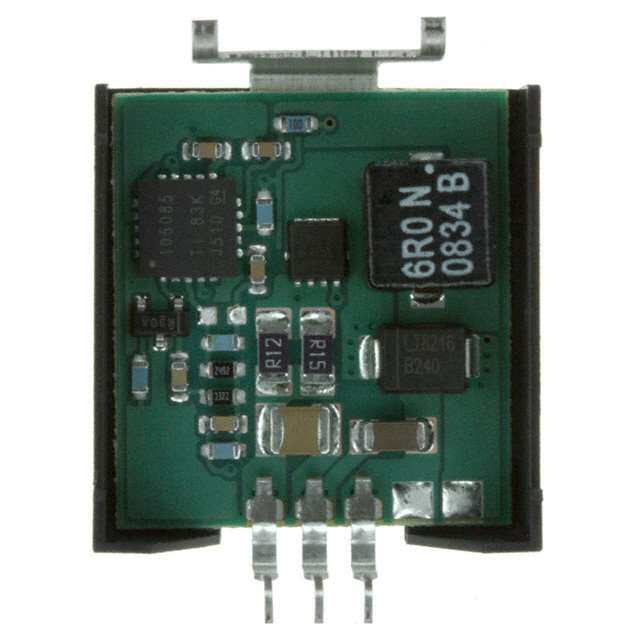

PT78HT208S
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 8V 2A
PDF
/
Inventory: 2615
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 3-SMD Module
Surface Mount YES
Number of Pins 3
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT78HT200
Size / Dimension 0.94Lx0.90W x 0.34 H 23.9mmx22.9mmx8.6mm
Feature OTP, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 16W
Technology HYBRID
Terminal Position SINGLE
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
Depth 22.86mm
Base Part Number 78HT208
Pin Count 3
Number of Outputs 1
Efficiency 90%
Voltage - Input (Max) 28V
Output Voltage 8V
Max Output Current 2A
Voltage - Input (Min) 12V
Input Voltage-Nom 15V
Output Current 2A
Max Output Voltage 8V
Control Mode VOLTAGE-MODE
Current - Output 1 2A
Min Output Voltage 8V
Switcher Configuration BUCK
Switching Frequency-Max 800kHz
Isolation Non-Isolated
Dimensions
Height 8.636mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
