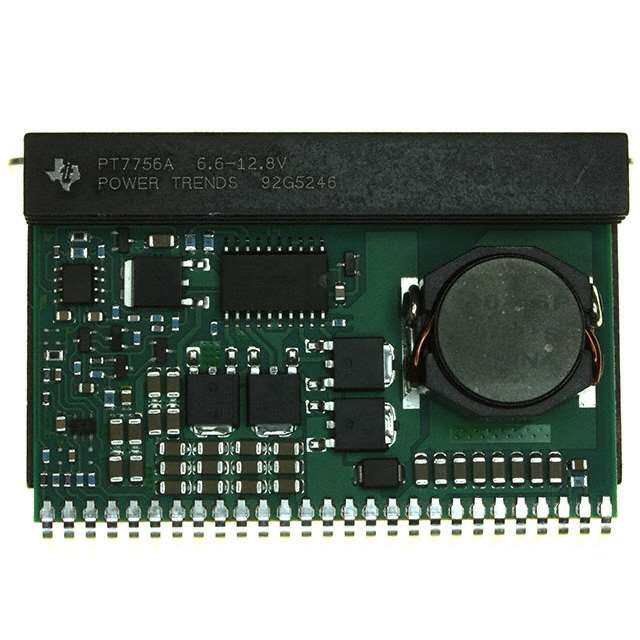

PT7756A
RoHS
/
Package 27-SIP Module, Horizontal
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 6.6-12.8VOUT 15A 24VIN HORZ
PDF
/
Buying Options
Total Price: USD $83.11
Unit Price: USD $83.109045
≥1 USD $83.109045
≥10 USD $78.404758
≥100 USD $73.966753
≥500 USD $69.779959
≥1000 USD $65.830147
Inventory: 1115
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 15mm
Length 71.37mm
Technical
Switching Frequency-Max 400kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Output Current 15A
Input Voltage-Nom 24V
Voltage - Input (Min) 20V
Voltage - Output 1 6.6V~12.8V
Max Output Current 15A
Output Voltage 12.8V
Voltage - Input (Max) 28V
Efficiency 88%
Number of Outputs 1
Pin Count 27
Base Part Number PT7756
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 192W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 27
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Series PT7750
Packaging Tray
Operating Temperature 0°C~85°C
Physical
Weight 66g
Number of Pins 27
Package / Case 27-SIP Module, Horizontal
Mounting Type Through Hole, Horizontal
Mount Horizontal, Through Hole
