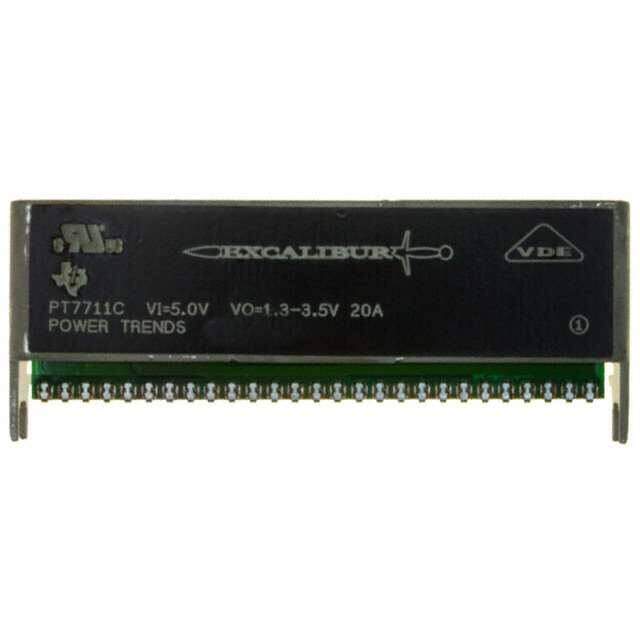

PT7711C
RoHS
RoHS compliant
RoHS compliantPackage 27-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 1.3-3.5V 20A 5VIN SMD
PDF
/
Buying Options
Total Price: USD $43
Unit Price: USD $42.9968
≥1 USD $42.9968
Inventory: 152
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 12.7mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Control Features Enable, Active High
Output Current 20A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 1.3V~3.5V
Max Output Current 20A
Output Voltage 3.5V
Voltage - Input (Max) 5.5V
Efficiency 90%
Number of Outputs 1
Pin Count 27
Base Part Number PT7711
Depth 30.22mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 215
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 70W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 27
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP
Size / Dimension 3.00Lx1.19W x 0.50 H 76.2mmx30.2mmx12.7mm
Series Excalibur? PT7711
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 36g
Number of Pins 27
Package / Case 27-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
