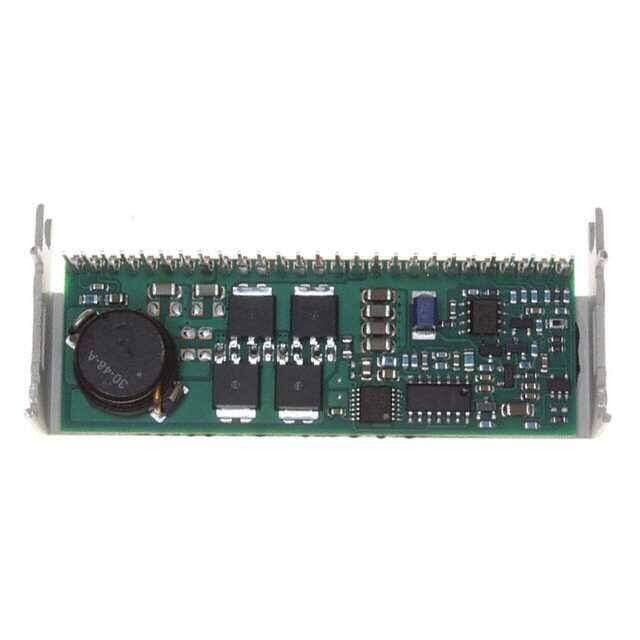

PT7711A
RoHS
/
Package 27-SIP Module, Horizontal
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 1.3-3.5V 20A 5VIN HRZ
PDF
/
Buying Options
Total Price: USD $105.94
Unit Price: USD $105.943477
≥1 USD $105.943477
≥10 USD $99.946674
≥100 USD $94.289315
≥500 USD $88.952179
≥1000 USD $83.917153
Inventory: 1112
Minimum: 1
-
+
Technical Details
Technical
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Output Current 20A
Control Mode VOLTAGE-MODE
Switcher Configuration SINGLE
Switching Frequency-Max 400kHz
Isolation Non-Isolated
Voltage - Output 1 1.3V~3.5V
Max Output Current 20A
Output Voltage 3.5V
Voltage - Input (Max) 5.5V
Efficiency 90%
Number of Outputs 1
Pin Count 27
Base Part Number PT7711
Depth 30.22mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 215
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 70W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 27
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 3.00Lx1.19W x 0.50 H 76.2mmx30.2mmx12.7mm
Series Excalibur? PT7711
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 12.7mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
Physical
Weight 36g
Number of Pins 27
Package / Case 27-SIP Module, Horizontal
Mounting Type Through Hole, Horizontal
Mount Horizontal, Through Hole
