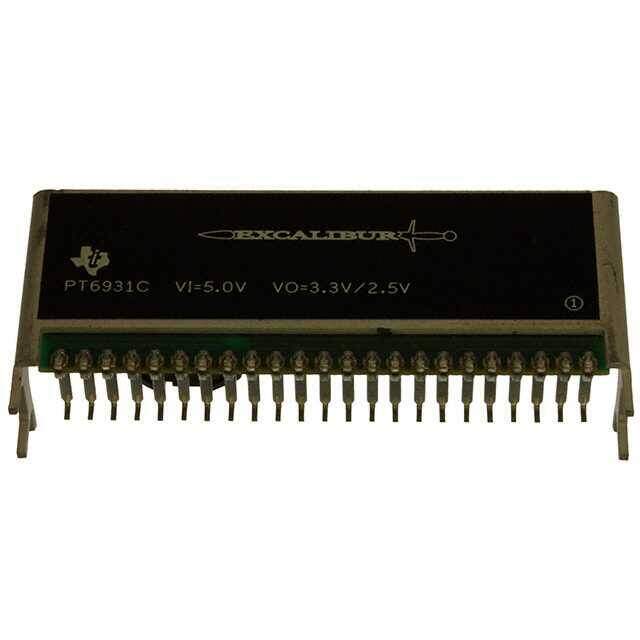

PT6931C
RoHS
RoHS compliant
RoHS compliantPackage 23-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 3.3V&2.5V/1.8V HRZ SMD
PDF
/
Buying Options
Total Price: USD $71.89
Unit Price: USD $71.8884
≥1 USD $71.8884
≥10 USD $58.9855
≥100 USD $57.1425
≥500 USD $55.29855
≥1000 USD $53.45555
Inventory: 1805
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 10.922mm
Technical
Current - Output 2 8A
Isolation Non-Isolated
Switcher Configuration SINGLE
Nominal Input Voltage 5V
Current - Output 1 8A
Control Mode VOLTAGE-MODE
Voltage - Output 2 2.5V
Output Power 25W
Output Current 7.7A
Current - Output (Max) 6A 2.2A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 2.2A
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Efficiency 75%
Number of Outputs 2
Pin Count 23
Base Part Number PT6931
Current Rating 7.7A
Depth 30.22mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 25W
Power Rating 25W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 23
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OTP
Size / Dimension 2.58Lx1.02W x 0.43 H 65.5mmx25.9mmx10.9mm
Series Excalibur? PT6930
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 29g
Number of Pins 23
Package / Case 23-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
