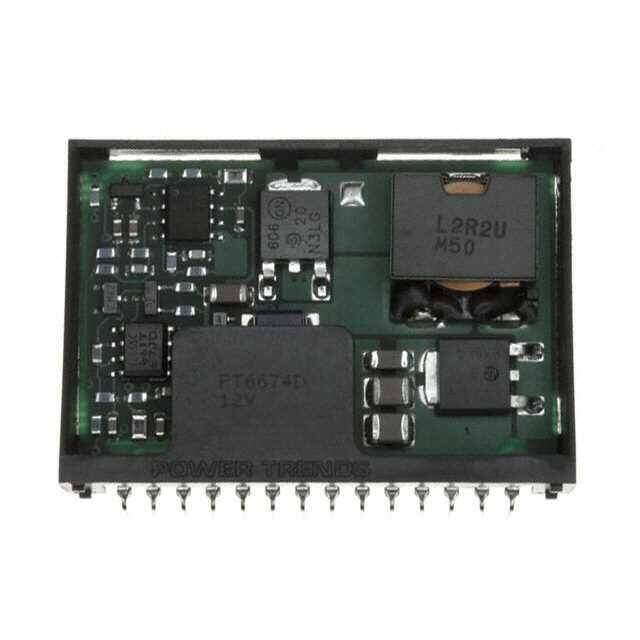

PT6674D
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 12V 2A 14PSIP HORZ
PDF
/
Buying Options
Total Price: USD $99
Unit Price: USD $99.002267
≥1 USD $99.002267
≥10 USD $93.398372
≥100 USD $88.111672
≥500 USD $83.124215
≥1000 USD $78.419072
Inventory: 1468
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Width 10.7mm
Length 43.18mm
Technical
Switching Frequency-Max 300kHz
Control Mode VOLTAGE-MODE
Topology Boost
Output Power 20W
Output Current 2A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 2A
Output Voltage 12V
Voltage - Input (Max) 5.5V
Efficiency 86%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 14
Base Part Number PT6674
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Depth 30.73mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 24W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Series PT6670
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 14g
Number of Pins 14
Package / Case 14-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
