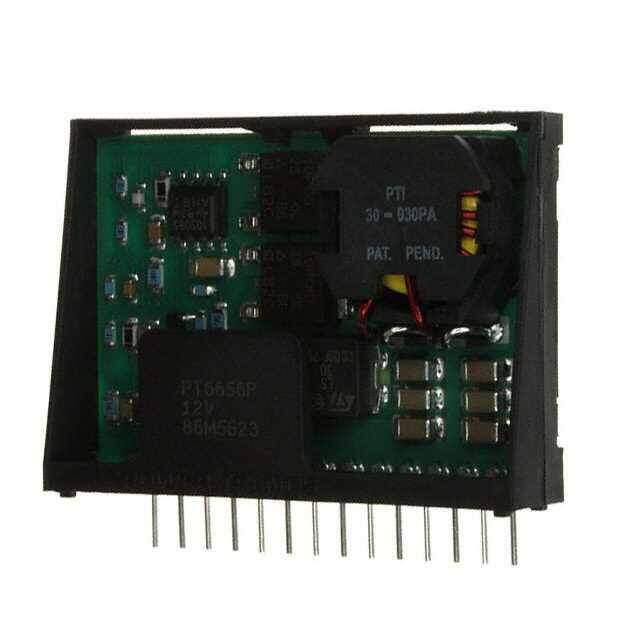

PT6656P
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 12V 5A 14PSIP VERT
PDF
/
Inventory: 2177
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 30.988mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 600kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Output Current 5A
Input Voltage-Nom 24V
Voltage - Input (Min) 15V
Max Output Current 5A
Output Voltage 12V
Voltage - Input (Max) 28V
Number of Outputs 1
Pin Count 14
Base Part Number PT6656
Depth 30.98mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 60W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 1.71Lx0.42W x 1.22 H 43.4mmx10.7mmx31.0mm
Series PT6650
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 14g
Number of Pins 14
Package / Case 14-SIP Module
Mounting Type Through Hole
Mount Through Hole
