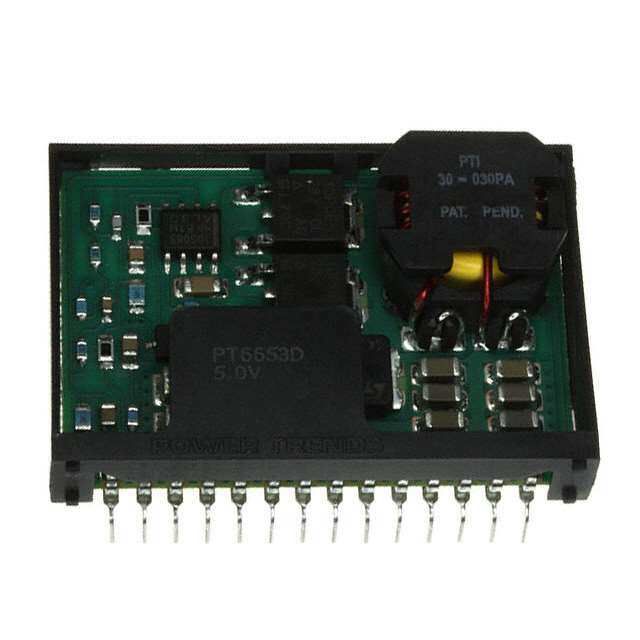

PT6653D
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 5V 5A 14PSIP HORZ
PDF
/
Inventory: 3909
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 14-SIP Module
Number of Pins 14
Weight 14g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT6650
Size / Dimension 1.71Lx1.22W x 0.42 H 43.4mmx31.0mmx10.7mm
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 25W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 30.73mm
Base Part Number PT6653
Pin Count 14
Number of Outputs 1
Efficiency 84%
Voltage - Input (Max) 28V
Output Voltage 5V
Max Output Current 5A
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Output Current 5A
Output Power 25W
Control Mode VOLTAGE-MODE
Current - Output 1 5A
Nominal Input Voltage 24V
Switcher Configuration SINGLE
Switching Frequency-Max 600kHz
Isolation Non-Isolated
Dimensions
Height 10.668mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
