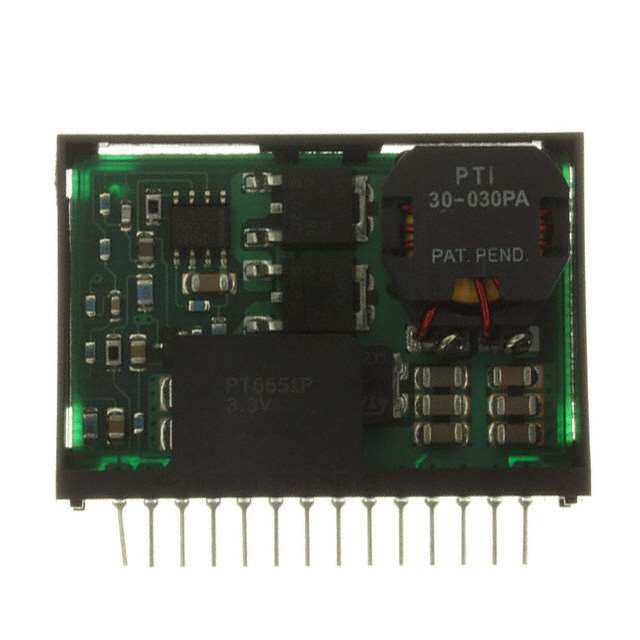

PT6651P
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 12/24V-3.3V 5A SIP VER
PDF
/
Buying Options
Total Price: USD $19.95
Unit Price: USD $19.9496
≥1 USD $19.9496
Inventory: 80
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 30.988mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 600kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Output Current 5A
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Max Output Current 5A
Output Voltage 3.3V
Voltage - Input (Max) 28V
Efficiency 80%
Number of Outputs 1
Pin Count 14
Base Part Number PT6651
Depth 30.98mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 16.5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 1.71Lx0.42W x 1.22 H 43.4mmx10.7mmx31.0mm
Series PT6650
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 14g
Number of Pins 14
Package / Case 14-SIP Module
Mounting Type Through Hole
Mount Through Hole
