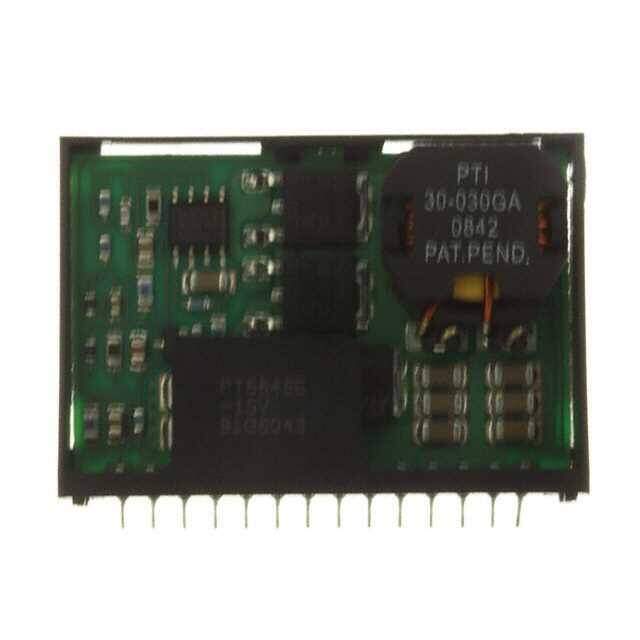

PT6645E
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER -15V 24W
PDF
/
Buying Options
Total Price: USD $43.55
Unit Price: USD $43.545252
≥1 USD $43.545252
≥10 USD $41.080427
≥100 USD $38.755119
≥500 USD $36.561433
≥1000 USD $34.49192
Inventory: 6356
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT6640 (24W)
Size / Dimension 1.71Lx1.22W x 0.42 H 43.4mmx31.0mmx10.7mm
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 23W
Technology HYBRID
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT6645
Pin Count 14
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 84%
Voltage - Input (Max) 15V
Max Output Current 1.5A
Voltage - Output 1 -15V
Voltage - Input (Min) 8V
Input Voltage-Nom 12V
Topology Boost
Control Mode VOLTAGE-MODE
Switcher Configuration SINGLE
Switching Frequency-Max 600kHz
Dimensions
Height 10.668mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
