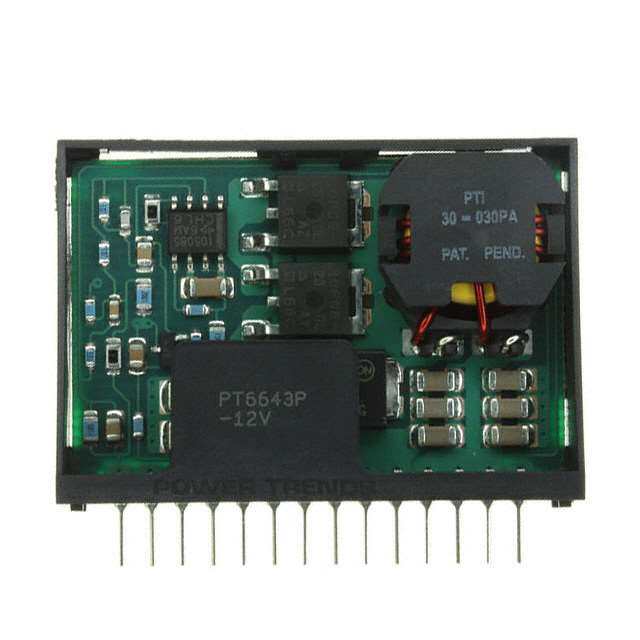

PT6643P
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR -12V 2A VADJ VERT
PDF
/
Buying Options
Total Price: USD $100.8
Unit Price: USD $100.800587
≥1 USD $100.800587
≥10 USD $95.094891
≥100 USD $89.712162
≥500 USD $84.634116
≥1000 USD $79.843505
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 10.7mm
Length 43.43mm
Technical
Switching Frequency-Max 600kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Topology Boost
Output Power 24W
Output Current 2A
Input Voltage-Nom 12V
Voltage - Input (Min) 8V
Max Output Current 2A
Output Voltage -12V
Voltage - Input (Max) 18V
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 14
Base Part Number PT6643
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 18W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6640 (24W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 14g
Number of Pins 14
Package / Case 14-SIP Module
Mounting Type Through Hole
Mount Through Hole
