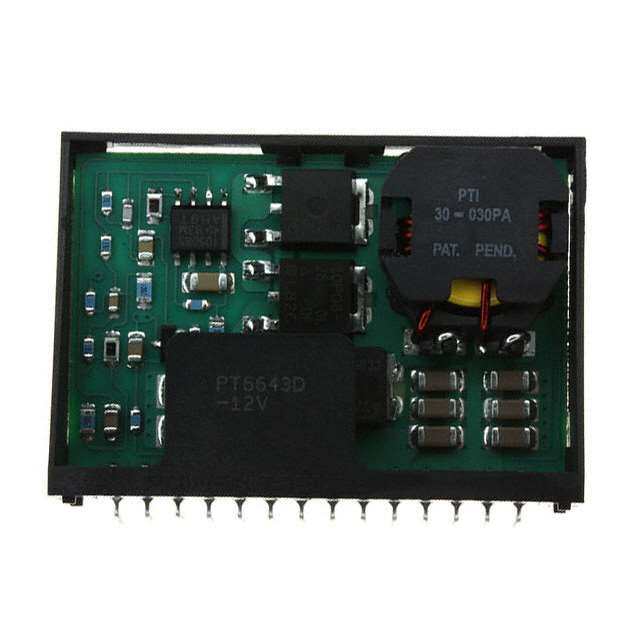

PT6643D
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER -12V 2A
PDF
/
Buying Options
Total Price: USD $195.94
Unit Price: USD $195.941993
≥1 USD $195.941993
≥10 USD $189.499029
≥25 USD $188.181755
≥50 USD $186.873635
≥100 USD $183.030006
≥500 USD $169.944296
Inventory: 1138
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 30.73mm
Length 43.18mm
Height 10.41mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 600kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Topology Boost
Output Power 24W
Output Current 2A
Input Voltage-Nom 12V
Voltage - Input (Min) 8V
Max Output Current 2A
Output Voltage -12V
Voltage - Input (Max) 18V
Efficiency 84%
Number of Outputs 1
Pin Count 14
Base Part Number PT6643
Depth 30.73mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 18W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6640 (24W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 14g
Number of Pins 14
Package / Case 14-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
