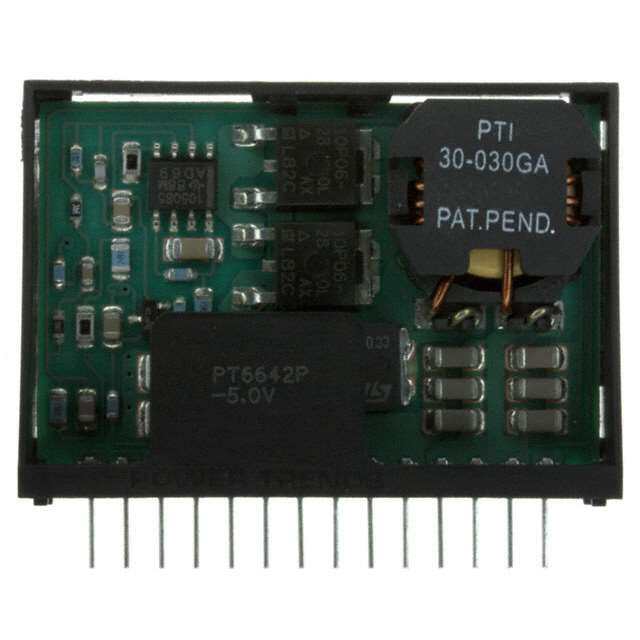

PT6642P
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR -5V 4A VADJ VERT
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
≥500 USD $26.84795
Inventory: 381
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 14-SIP Module
Number of Pins 14
Weight 14g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT6640 (24W)
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 12W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 30.98mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT6642
Pin Count 14
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 80%
Voltage - Input (Max) 25V
Output Voltage -5V
Max Output Current 4A
Voltage - Input (Min) 8V
Input Voltage-Nom 12V
Output Current 4A
Output Power 24W
Topology Boost
Control Mode VOLTAGE-MODE
Switcher Configuration SINGLE
Switching Frequency-Max 600kHz
Isolation Non-Isolated
Dimensions
Length 43.43mm
Width 10.7mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
