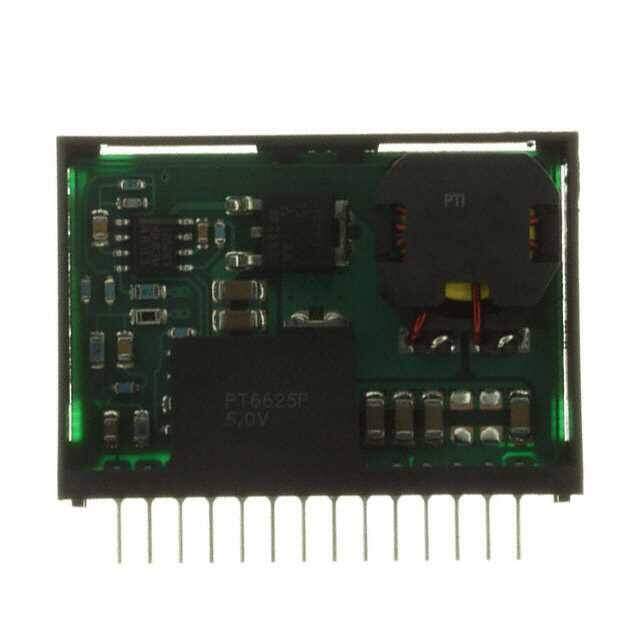

PT6625P
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 6A
PDF
/
Inventory: 1319
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 14-SIP Module
Number of Pins 14
Weight 14g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT6620
Size / Dimension 1.71Lx0.42W x 1.22 H 43.4mmx10.7mmx31.0mm
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 30W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 30.98mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT6625
Pin Count 14
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 85%
Voltage - Input (Max) 16V
Output Voltage 5V
Max Output Current 6A
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Output Current 6A
Output Power 30W
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Nominal Input Voltage 12V
Switcher Configuration SINGLE
Switching Frequency-Max 750kHz
Isolation Non-Isolated
Dimensions
Height 30.988mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
