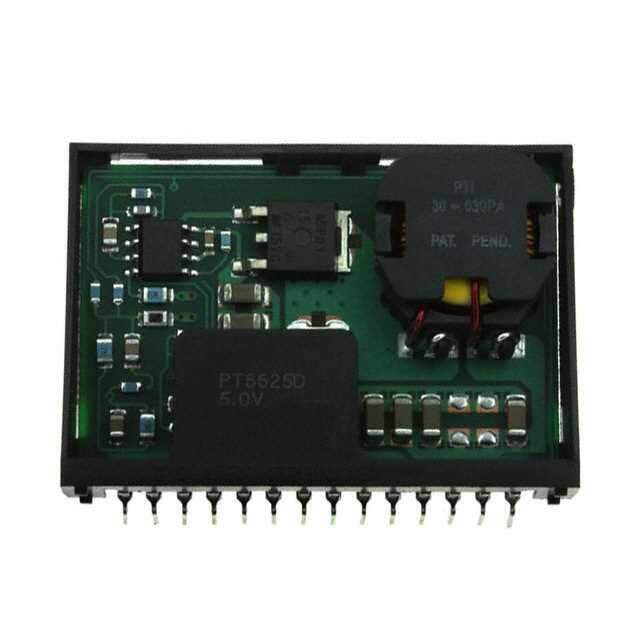

PT6625D
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 6A
PDF
/
Buying Options
Total Price: USD $77.1
Unit Price: USD $77.102
≥1 USD $77.102
≥10 USD $74.6928
≥100 USD $72.28265
≥500 USD $69.87345
≥1000 USD $62.6449
Inventory: 248
Minimum: 1
-
+
Technical Details
Technical
Output Current 6A
Control Mode VOLTAGE-MODE
Switcher Configuration SINGLE
Switching Frequency-Max 750kHz
Isolation Non-Isolated
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Max Output Current 6A
Output Voltage 5V
Voltage - Input (Max) 16V
Efficiency 85%
Number of Outputs 1
Pin Count 14
Base Part Number PT6625
Depth 30.73mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 30W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 1.71Lx1.22W x 0.42 H 43.4mmx31.0mmx10.7mm
Series PT6620
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 10.668mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 14g
Number of Pins 14
Package / Case 14-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
