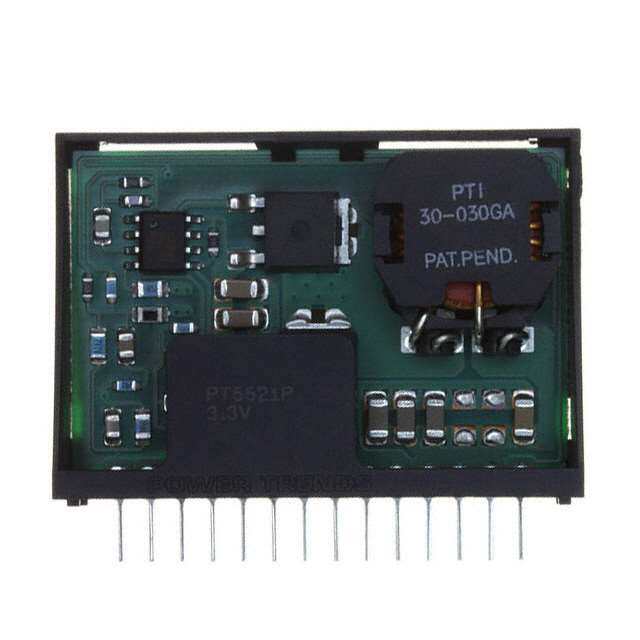

PT6621P
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 12V-3.3V 7A SIP VERTIC
PDF
/
Buying Options
Total Price: USD $208.32
Unit Price: USD $208.317274
≥1 USD $208.317274
≥10 USD $201.467385
≥25 USD $200.06691
≥50 USD $198.676186
≥100 USD $194.589797
≥500 USD $180.677621
Inventory: 1422
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 14-SIP Module
Number of Pins 14
Weight 14g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT6620
Size / Dimension 1.71Lx0.42W x 1.22 H 43.4mmx10.7mmx31.0mm
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 19.8W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 30.98mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT6621
Pin Count 14
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 83%
Voltage - Input (Max) 16V
Output Voltage 3.3V
Max Output Current 6A
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Output Current 6A
Control Mode VOLTAGE-MODE
Switcher Configuration SINGLE
Switching Frequency-Max 750kHz
Isolation Non-Isolated
Dimensions
Height 30.988mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
