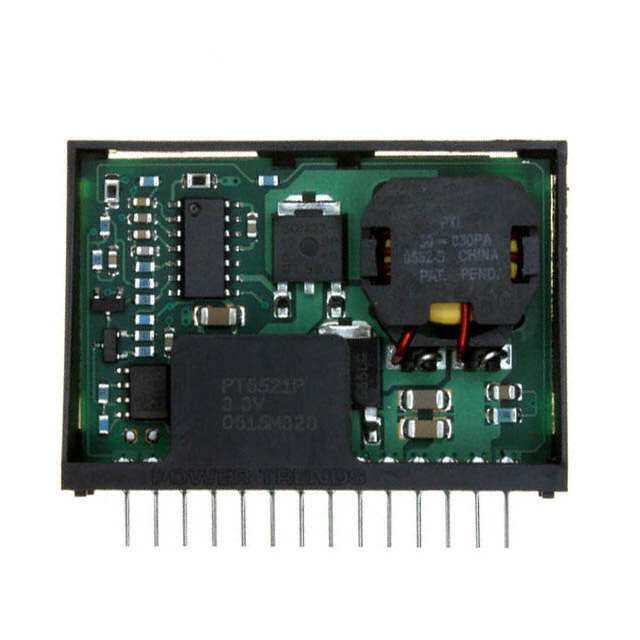

PT6521P
RoHS
RoHS compliant
RoHS compliantPackage 14-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 3.3V 8AMP ADJ VERT
PDF
/
Buying Options
Total Price: USD $429.01
Unit Price: USD $429.009712
≥1 USD $429.009712
≥10 USD $414.903014
≥25 USD $412.018882
≥50 USD $409.154799
≥100 USD $400.739271
≥500 USD $372.088463
Inventory: 1593
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 10.7mm
Length 43.43mm
Technical
Switching Frequency-Max 400kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Output Current 8A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 8A
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Efficiency 89%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 14
Base Part Number PT6521
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 26.4W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6520
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 12.5g
Number of Pins 14
Package / Case 14-SIP Module
Mounting Type Through Hole
Mount Through Hole
