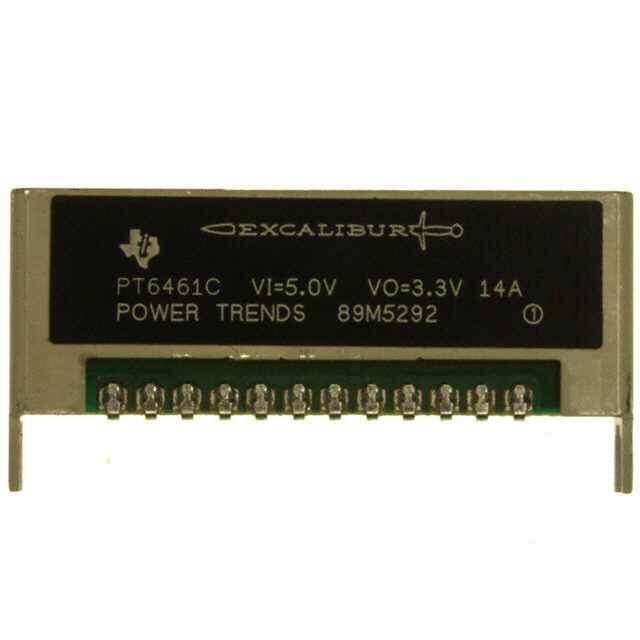

PT6461C
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG SW 3.3V 14A SMD 12SIP
PDF
/
Inventory: 4961
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case 12-SIP SMD Module
Number of Pins 12
Mounting Type Surface Mount
Mount Surface Mount
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series Excalibur? PT6460
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 46.2W
Technology HYBRID
Terminal Position SINGLE
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
Depth 21.21mm
Base Part Number PT6461
Pin Count 12
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 5.5V
Output Voltage 3.3V
Max Output Current 14A
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Output Current 14A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency-Max 300kHz
Isolation Non-Isolated
Dimensions
Height 7.87mm
Length 43.43mm
Width 16.9mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
