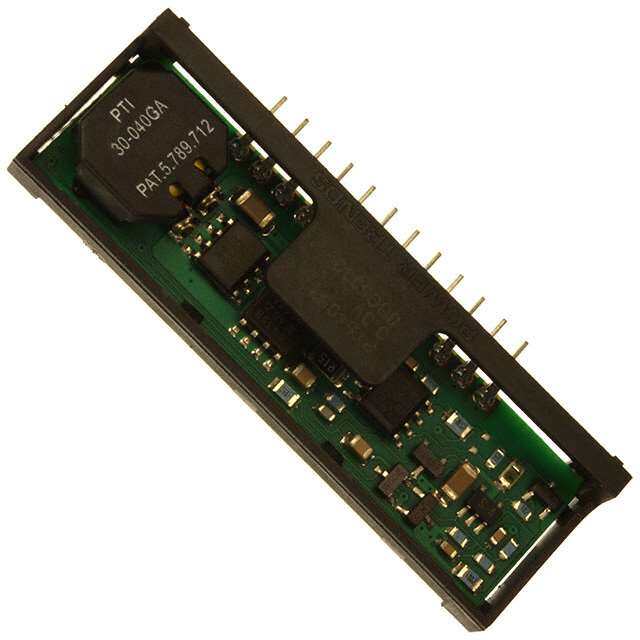

PT6405P
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 3.3V 3A ADJ VRT 12SIP
PDF
/
Buying Options
Total Price: USD $390.86
Unit Price: USD $390.859304
≥1 USD $390.859304
≥10 USD $378.007066
≥25 USD $375.37941
≥50 USD $372.770019
≥100 USD $365.102859
≥500 USD $338.999869
Inventory: 1537
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 9.65mm
Length 52.32mm
Technical
Switching Frequency-Max 800kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 3A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 3A
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Efficiency 85%
Number of Outputs 1
Pin Count 12
Base Part Number PT6405
Depth 9.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 9.9W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6400
Packaging Tray
Operating Temperature 0°C~70°C
Physical
Weight 6.5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole
Mount Through Hole
