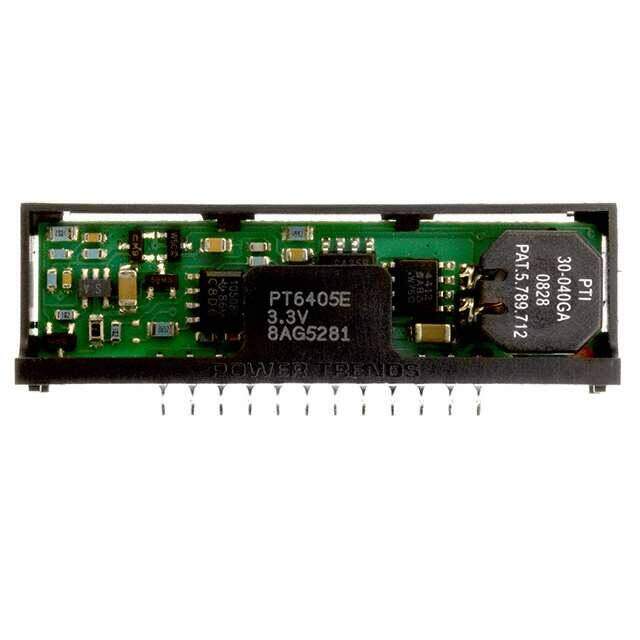

PT6405ET
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V
PDF
/
Buying Options
Total Price: USD $26.66
Unit Price: USD $26.657152
≥1 USD $26.657152
≥10 USD $25.148258
≥100 USD $23.724773
≥500 USD $22.381859
≥1000 USD $21.114965
Inventory: 1278
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 9.65mm
Length 52.05mm
Technical
Switching Frequency-Max 800kHz
Switcher Configuration BUCK
Output Current 3A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 3A
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 12
Base Part Number PT6405
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 17.01mm
Number of Functions 1
Peak Reflow Temperature (Cel) 215
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 9.9W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6400
Packaging Tape & Reel (TR)
Operating Temperature 0°C~85°C
Physical
Number of Pins 12
Package / Case 12-SIP SMD Module
Mounting Type Surface Mount
Mount Surface Mount
