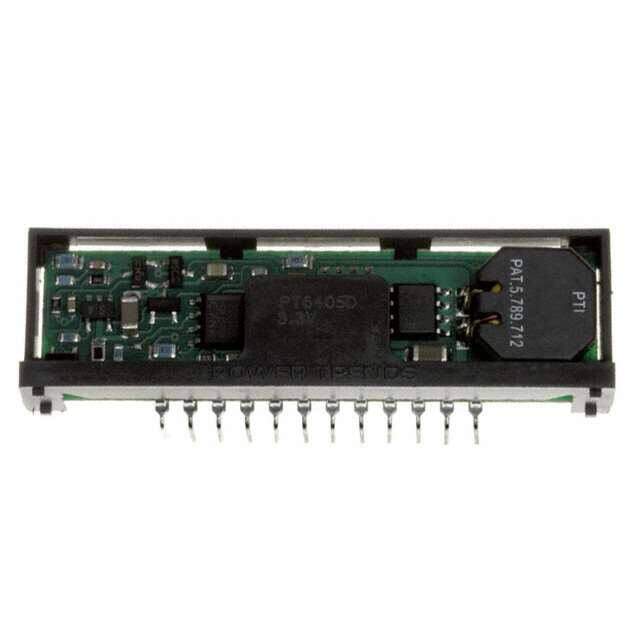

PT6405D
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 3.3V 3A ADJ HRZ 12-SIP
PDF
/
Inventory: 8304
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 9.65mm
Length 52.05mm
Technical
Switching Frequency-Max 800kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 3A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 3A
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Efficiency 85%
Number of Outputs 1
Pin Count 12
Base Part Number PT6405
Current Rating 3A
Depth 17.01mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 9.9W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6400
Packaging Tray
Operating Temperature 0°C~70°C
Physical
Weight 6.5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
