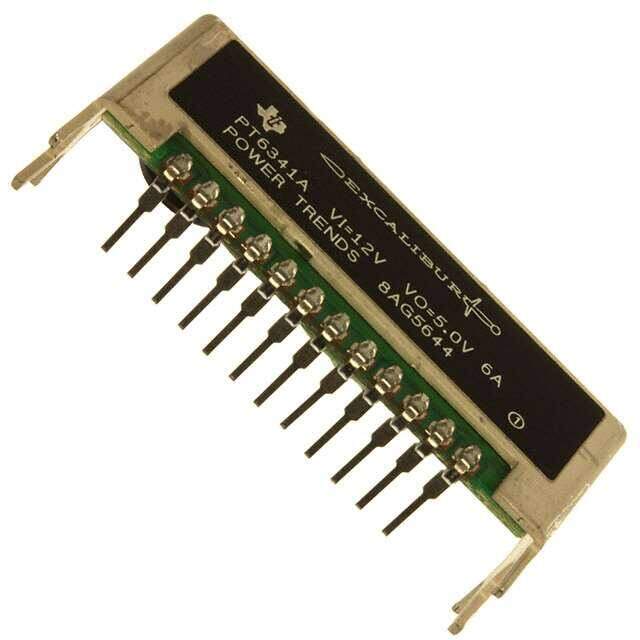

PT6341A
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 5V 6A 12VIN ADJ HZ 12-SIP
PDF
/
Buying Options
Total Price: USD $28.57
Unit Price: USD $28.571909
≥1 USD $28.571909
≥10 USD $26.954633
≥100 USD $25.428899
≥500 USD $23.989527
≥1000 USD $22.631626
Inventory: 4799
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 16.9mm
Length 43.43mm
Height 7.87mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Output Power 30W
Output Current 6A
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Max Output Current 6A
Output Voltage 5V
Voltage - Input (Max) 13.2V
Efficiency 93%
Number of Outputs 1
Pin Count 12
Base Part Number PT6341
Depth 16.9mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 30W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Excalibur? PT6340
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 23g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
