PT6304N
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description

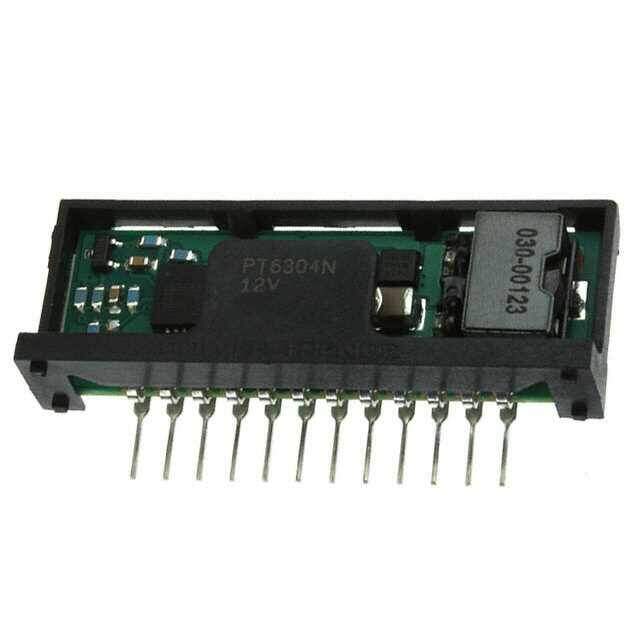

REG 12V 3A ADJUSTABLE VERT 12SIP
PDF
/
Buying Options
Total Price: USD $5.65
Unit Price: USD $5.6525
≥1 USD $5.6525
≥10 USD $4.6379
≥100 USD $4.49255
≥500 USD $4.34815
≥1000 USD $4.2028
Inventory: 1143
Minimum: 1
-
+
Technical Details
Technical
Max Input Voltage (DC) 30V
Min Input Voltage (DC) 16V
Nominal Output Voltage 12V
Isolation Non-Isolated
Switcher Configuration BUCK
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Output Power 36W
Output Current 3A
Input Voltage-Nom 10V
Max Output Current 3A
Output Voltage 12V
Voltage - Input (Max) 38V
Efficiency 91%
Number of Outputs 1
Pin Count 12
Base Part Number PT6304
Frequency 750kHz
Current Rating 3A
Depth 9.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 36W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6300
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 16.75mm
Length 43.15mm
Width 9.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 6.5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole
Mount Through Hole
Alternative Model
