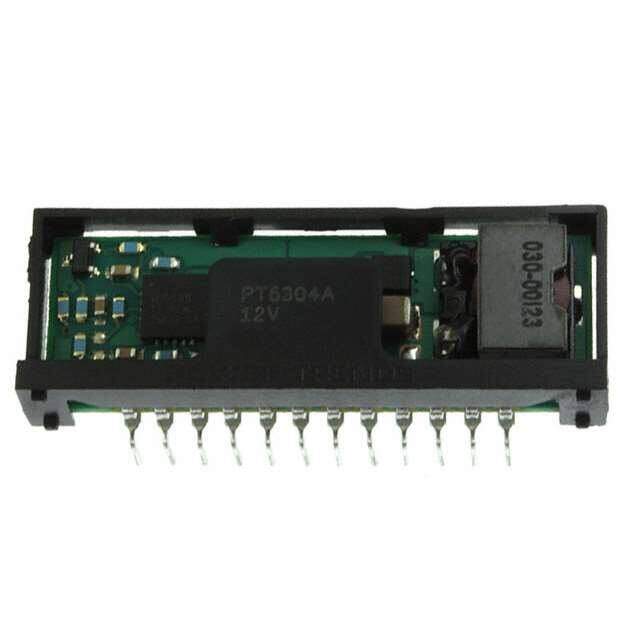

PT6304A image
Favorite
PT6304A image
Favorite
RoHS
RoHS RoHS compliant
Package 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 12V 3A
PDF
/
Inventory: 7847
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 16.75mm
Length 43.43mm
Height 9.4mm

Technical

Isolation Non-Isolated
Switching Frequency-Max 900kHz
Switcher Configuration BUCK
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Output Power 36W
Output Current 3A
Input Voltage-Nom 10V
Voltage - Input (Min) 16V
Max Output Current 3A
Output Voltage 12V
Voltage - Input (Max) 38V
Efficiency 91%
Number of Outputs 1
Pin Count 12
Base Part Number PT6304
Depth 17.01mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 36W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6300
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 6.5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
