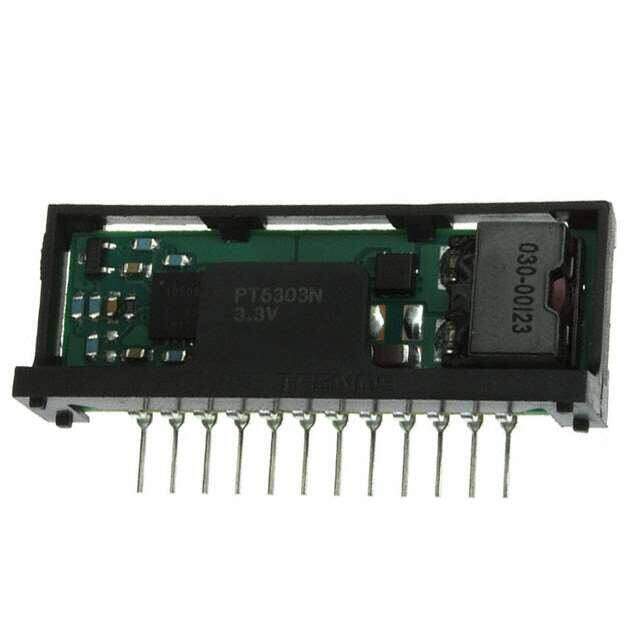

PT6303N
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 3.3V 3A ADJ ON/OFF VRT 12SIP
PDF
/
Inventory: 7162
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-SIP Module
Number of Pins 12
Weight 6.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT6300
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 9.9W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 9.4mm
Base Part Number PT6303
Pin Count 12
Number of Outputs 1
Efficiency 84%
Voltage - Input (Max) 26V
Output Voltage 3.3V
Max Output Current 3A
Voltage - Input (Min) 9V
Input Voltage-Nom 10V
Output Current 3A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency-Max 600kHz
Isolation Non-Isolated
Dimensions
Length 43.15mm
Width 9.65mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
