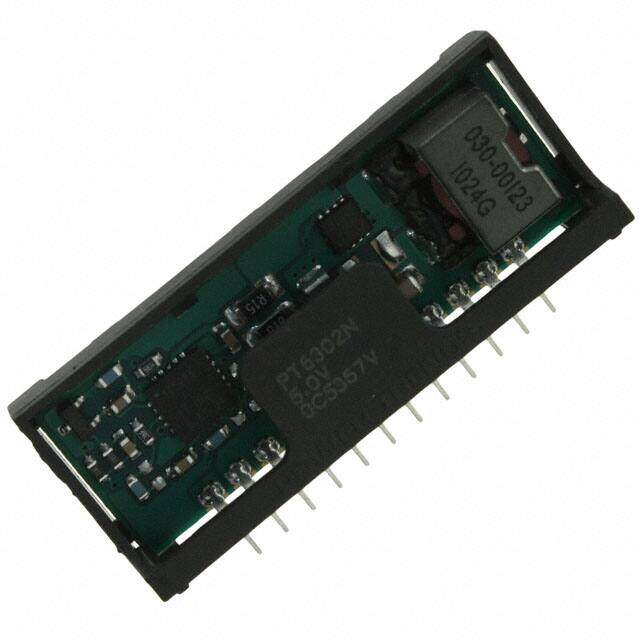

PT6302N image
Favorite
PT6302N image
Favorite
RoHS
RoHS RoHS compliant
Package 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 3A
PDF
/
Buying Options
Total Price: USD $85.36
Unit Price: USD $85.3632
≥1 USD $85.3632
≥10 USD $82.60915
≥100 USD $79.8551
≥500 USD $71.59485
Inventory: 41
Minimum: 1
-
+

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 12-SIP Module
Number of Pins 12
Weight 6.5g

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Series PT6300
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 15W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 9.4mm
Current Rating 3A
Frequency 500kHz
Base Part Number PT6302
Pin Count 12
Number of Outputs 1
Efficiency 89%
Voltage - Input (Max) 38V
Output Voltage 5V
Max Output Current 3A
Operating Supply Voltage 30V
Input Voltage-Nom 10V
Output Current 3A
Output Power 15W
Control Mode VOLTAGE-MODE
Current - Output 1 3A
Switcher Configuration BUCK
Max Output Power 15W
Isolation Non-Isolated
Nominal Output Voltage 5V
Max Input Voltage (DC) 30V
Min Input Voltage (DC) 9V

Dimensions

Height 16.75mm
Length 43.15mm
Width 9.4mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
