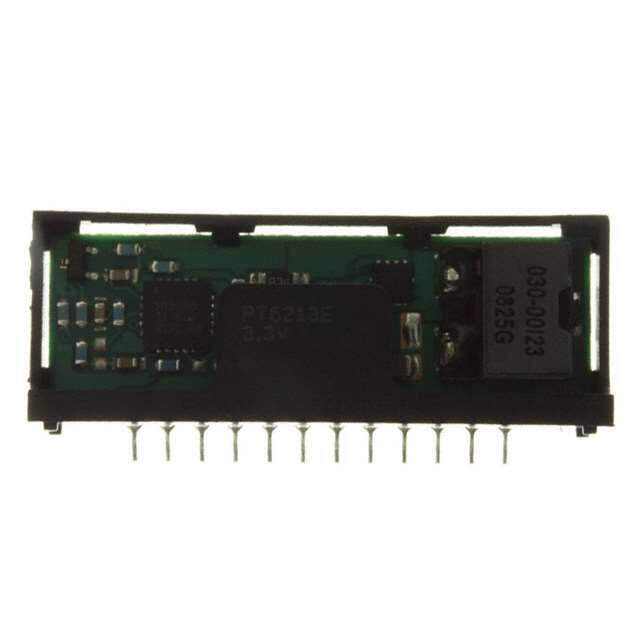

PT6213E
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 3.3V 2A ADJ ON/OFF SMD 12SIP
PDF
/
Inventory: 1892
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 16.75mm
Length 43.15mm
Height 9.4mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 900kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 2A
Input Voltage-Nom 9V
Voltage - Input (Min) 9V
Max Output Current 2A
Output Voltage 3.3V
Voltage - Input (Max) 26V
Efficiency 84%
Number of Outputs 1
Pin Count 12
Base Part Number PT6213
Depth 16.75mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 6.6W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6210
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 6g
Number of Pins 12
Package / Case 12-SIP SMD Module
Mounting Type Surface Mount
Mount Surface Mount
