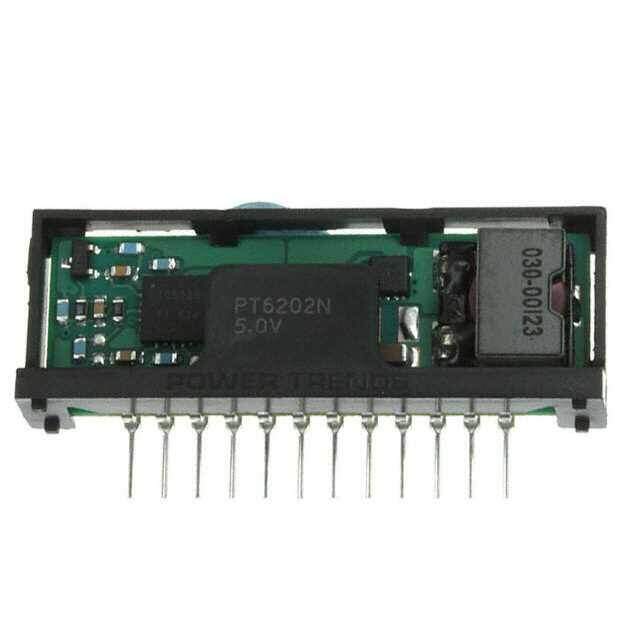

PT6202N image
Favorite
PT6202N image
Favorite
RoHS
RoHS RoHS compliant
Package 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG ADJ 5V/2A INT SW VERT 12-SIP
PDF
/
Inventory: 4903
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 12-SIP Module
Number of Pins 12
Weight 8.5g

Technical

Operating Temperature -40°C~60°C
Packaging Tray
Series PT6200
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 10W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 9.4mm
Base Part Number PT6202
Pin Count 12
Number of Outputs 1
Efficiency 90%
Voltage - Input (Max) 30V
Output Voltage 5V
Max Output Current 2A
Voltage - Input (Min) 7.25V
Input Voltage-Nom 8V
Output Current 2A
Control Mode VOLTAGE-MODE
Switcher Configuration SINGLE
Switching Frequency-Max 800kHz
Isolation Non-Isolated

Dimensions

Length 43.43mm
Width 9.65mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
