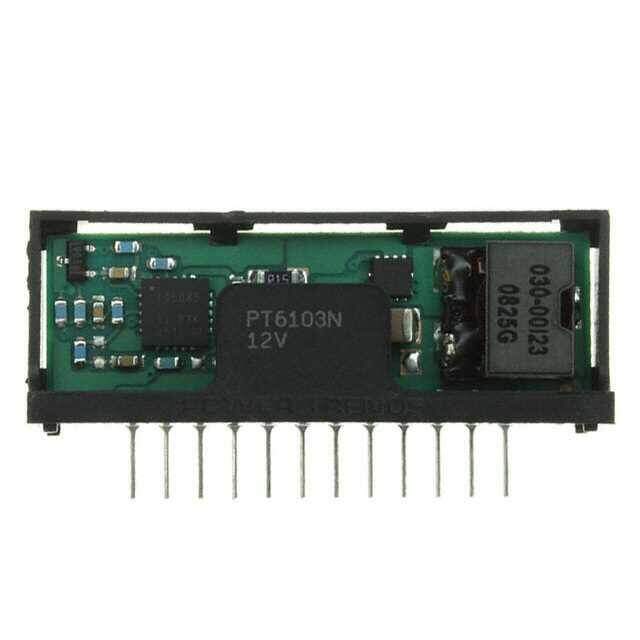

PT6103N image
Favorite
PT6103N image
Favorite
RoHS
RoHS RoHS compliant
Package 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG ADJ 12V/1A INT SW VERT 12SIP
PDF
/
Inventory: 9916
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 9.65mm
Length 43.15mm

Technical

Isolation Non-Isolated
Switching Frequency-Max 600kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 1A
Input Voltage-Nom 24V
Voltage - Input (Min) 16V
Max Output Current 1A
Output Voltage 12V
Voltage - Input (Max) 38V
Efficiency 91%
Number of Outputs 1
Pin Count 12
Base Part Number PT6103
Depth 9.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 12W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6100
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole
Mount Through Hole
