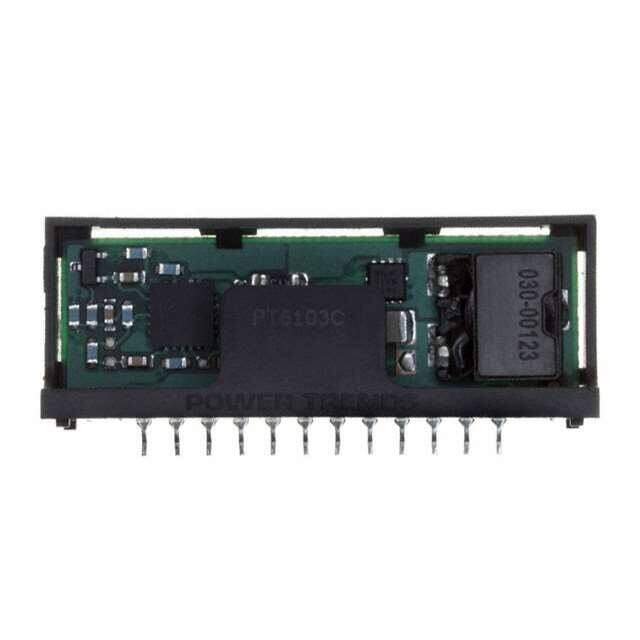

PT6103C image
Favorite
PT6103C image
Favorite
RoHS
RoHS RoHS compliant
Package 12-SIP SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG 12V 1A ADJ 3PSIP SMD 12-SIP
PDF
/
Inventory: 3703
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 12-SIP SMD Module
Number of Pins 12
Weight 5g

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Series PT6100
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 12W
Technology HYBRID
Terminal Position SINGLE
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
Depth 16.75mm
Base Part Number PT6103
Pin Count 12
Number of Outputs 1
Efficiency 91%
Voltage - Input (Max) 38V
Output Voltage 12V
Max Output Current 1A
Voltage - Input (Min) 16V
Input Voltage-Nom 24V
Output Current 1A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency-Max 600kHz
Isolation Non-Isolated

Dimensions

Height 9.4mm
Length 43.15mm
Width 16.75mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
