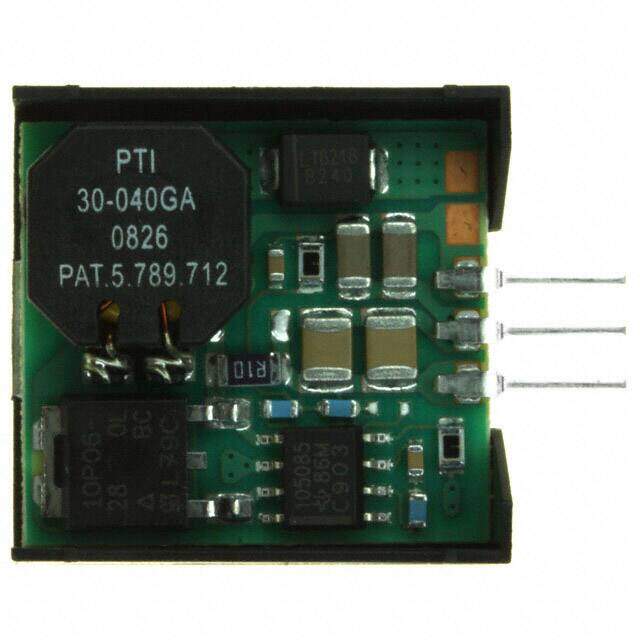

PT6102N
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 3.3V 1A ADJ 3PSIP VRT 12-SIP
PDF
/
Buying Options
Total Price: USD $51.56
Unit Price: USD $51.563681
≥1 USD $51.563681
≥10 USD $48.644981
≥100 USD $45.891493
≥500 USD $43.293863
≥1000 USD $40.843268
Inventory: 1380
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 9.65mm
Length 43.15mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 600kHz
Switcher Configuration BUCK
Current - Output 1 1A
Control Mode VOLTAGE-MODE
Output Power 3.3W
Output Current 1A
Input Voltage-Nom 15V
Voltage - Input (Min) 9V
Max Output Current 1A
Output Voltage 3.3V
Voltage - Input (Max) 26V
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 12
Base Part Number PT6102
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 9.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3.3W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole
Mount Through Hole
