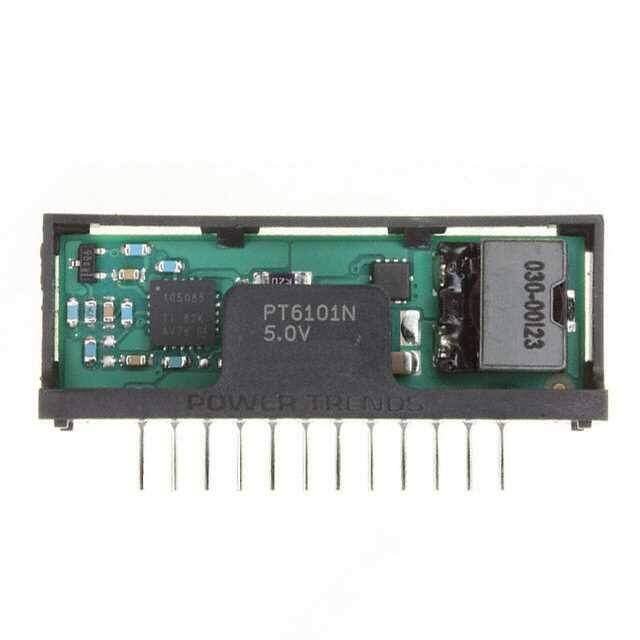

PT6101N image
Favorite
PT6101N image
Favorite
RoHS
RoHS RoHS compliant
Package 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG ADJ 5V/1A INT SW VERT 12-SIP
PDF
/
Inventory: 2226
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 9.65mm
Length 43.4mm
Height 17mm

Technical

Isolation Non-Isolated
Switcher Configuration BUCK
Nominal Input Voltage 38V
Current - Output 1 1A
Control Mode VOLTAGE-MODE
Output Power 5W
Output Current 1A
Input Voltage-Nom 15V
Voltage - Input (Min) 9V
Max Output Current 1A
Output Voltage 5V
Efficiency 89%
Number of Outputs 1
Pin Count 12
Base Part Number PT6101
Frequency 500kHz
Depth 9.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6100
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole
Mount Through Hole
